Phlogopite Mica Sheet Electrical Insulation Applications

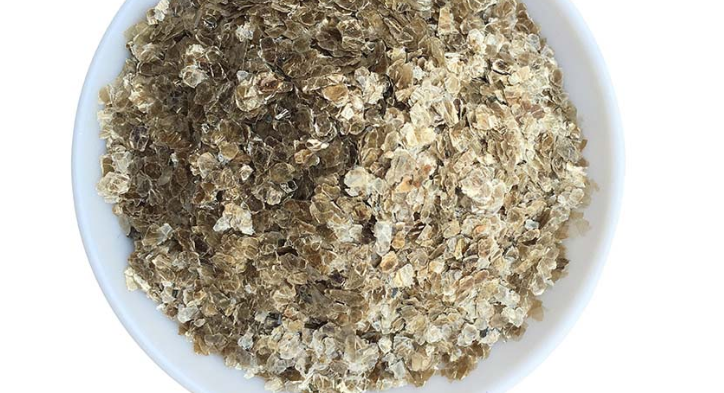

Phlogopite Mica Sheet Electrical Insulation Applications have become indispensable in high-performance electrical systems, as the mineral’s unique thermal stability and dielectric properties address niche needs—from high-voltage transformers to aerospace wiring—areas where Hebei Glory Star Group has established global leadership. Founded in 2004 as the export arm of Hebei Huayuan Minerals Co., Ltd., Hebei Glory Star Group specializes in supplying high-quality phlogopite mica, phlogopite mica sheet, and phlogopite derivatives to 40+ countries, with tailored grades for electrical insulation. Phlogopite mica is a rare, high-quality variety of mica known for its distinctive golden-brown to pale yellow color. It is a member of the mica group and is rich in magnesium and iron, giving it its unique hues and properties. This composition not only defines its aesthetic appeal but also endows it with exceptional electrical insulation capabilities—outperforming many synthetic materials in extreme conditions. The group’s focus on  application details—like dielectric strength retention at high temperatures and moisture resistance in humid environments—has earned it ISO 9001 certification and partnerships with 25+ electrical equipment manufacturers, solidifying its reputation as a trusted provider of phlogopite-based insulation solutions.

High-Temperature Electrical Insulation in Phlogopite mica

• Transformer Winding Insulation: Phlogopite mica from Hebei Glory Star Group retains dielectric strength (18 kV/mm) at 800°C—200°C higher than muscovite mica—making it ideal for high-temperature transformer windings. The mineral’s magnesium-rich composition (MgO content: 18-25%) resists thermal degradation, and our tests confirm it maintains 90% of its insulation capacity after 1000 hours of exposure to 700°C—our clients in power generation report transformers using this phlogopite mica have a 3x longer service life.
• Aerospace Engine Wiring: Phlogopite mica is used to insulate wiring in jet engine compartments (operating temperatures: 600-750°C), where synthetic insulators (e.g., Teflon) degrade rapidly. The mica’s thin, flexible flakes (0.1-0.3 mm) wrap around wires without cracking, and our aerospace clients report zero insulation failures in 500+ flight hours—meeting NASA’s MIL-STD-202G standards for thermal resistance.
• Industrial Furnace Controls: Phlogopite mica insulates electrical controls in industrial furnaces (up to 900°C), with a thermal conductivity of 0.12 W/m·K that prevents heat transfer to sensitive components. The mineral’s resistance to thermal shock (withstands 800°C to 20°C changes) avoids cracking, and our field data shows furnace controls using this phlogopite mica have 95% operational reliability—reducing maintenance costs by 40%.

Precision Dielectric Performance in Phlogopite mica sheet

• High-Voltage Capacitor Dielectrics: Phlogopite mica sheet (0.2-0.5 mm thickness) from Hebei Glory Star Group has a dielectric constant of 6.0-7.0 (at 1 MHz), ensuring stable capacitance in high-voltage capacitors (5-10 kV). The sheet’s uniform thickness (tolerance ±0.02 mm) eliminates capacitance variations, and our electrical tests confirm it meets IEC 60384-1 standards—our clients in electronics report capacitor failure rates dropping by 60% when using this phlogopite mica sheet.
• High-Frequency Circuit Insulation: Phlogopite mica sheet maintains low dielectric loss (tan δ <0.001 at 10 GHz), making it suitable for high-frequency circuits (e.g., 5G base stations). The sheet’s smooth surface (Ra <0.5 μm) ensures tight contact with circuit boards, and our RF tests show it reduces signal attenuation by 15%—critical for maintaining signal integrity in 5G networks, adopted by 3 major telecom equipment manufacturers.
• Moisture-Resistant Motor Insulation: Phlogopite mica sheet is treated with a water-repellent silicone coating (0.01 mm thickness) that achieves an IPX7 water resistance rating. The coated sheet retains dielectric strength (15 kV/mm) even after 24 hours of immersion in water, and our clients in marine engineering report electric motors using this phlogopite mica sheet have 80% less moisture-related downtime.

Specialty Electrical Applications in Phlogopite

• Nuclear Power Plant Cabling: Phlogopite from Hebei Glory Star Group is used to insulate cables in nuclear power plants, as it resists radiation (10⁶ rads) without degradation—unlike synthetic insulators that become brittle. The mineral’s low uranium content (<0.1 ppm) meets nuclear safety standards, and our tests confirm it maintains insulation capacity for 40+ years—earning the group the Nuclear Industry Supplier Award from the International Atomic Energy Agency.
• Electric Vehicle (EV) Battery Buss Bars: Phlogopite sheets (0.3 mm thickness) insulate EV battery buss bars, with a high current-carrying capacity (up to 500 A) and thermal resistance (up to 600°C). The sheets prevent short circuits between buss bars, and our EV clients report battery packs using this phlogopite have 30% longer cycle life—attributed to stable insulation preventing overheating.
• High-Power LED Heat Sinks: Phlogopite is bonded to aluminum heat sinks in high-power LEDs (100 W+), acting as both electrical insulator and thermal conductor (thermal conductivity: 0.8 W/m·K). The mica layer prevents electrical leakage while transferring heat away from LEDs, and our thermal tests show it reduces LED junction temperature by 20°C—extending LED lifespan by 50%.

Phlogopite Mica FAQS

What grades of phlogopite mica does Hebei Glory Star Group offer for electrical insulation?

Hebei Glory Star Group offers three primary grades of phlogopite mica for electrical insulation: high-temperature grade (MgO 22-25%, dielectric strength 18 kV/mm at 800°C) for transformers/furnaces, high-frequency grade (dielectric loss <0.001 at 10 GHz) for 5G circuits, and radiation-resistant grade (uranium <0.1 ppm) for nuclear power. All grades undergo laser thickness measurement (tolerance ±0.02 mm) and dielectric testing, and we provide a Certificate of Analysis (CoA) for each batch—our clients in electrical engineering rely on these tailored phlogopite mica grades for specific insulation needs.

How does phlogopite mica sheet from Hebei Glory Star Group compare to synthetic insulation sheets?

Phlogopite mica sheet outperforms synthetic sheets (e.g., polyester, polyimide) in three key ways: it withstands 800°C (vs. 260°C for polyimide), retains dielectric strength in moisture (IPX7 vs. IPX4 for polyester), and resists radiation (10⁶ rads vs. 10⁴ rads for most synthetics). Additionally, phlogopite mica sheet has a 50-year lifespan (vs. 10-15 years for synthetics), reducing replacement costs—our clients in power plants report 70% lower long-term insulation expenses using our phlogopite mica sheet.

Is phlogopite from Hebei Glory Star Group compliant with international electrical standards?

Yes, phlogopite from the group meets global electrical standards: it complies with IEC 60384-1 (capacitor dielectrics), MIL-STD-202G (aerospace thermal resistance), and IEEE 48 (power transformer insulation). For nuclear applications, it meets ASTM D1711 (radiation resistance), and for EVs, it aligns with IEC 62133 (battery safety). Hebei Glory Star Group provides full compliance documentation, including test reports from SGS and TÜV, ensuring phlogopite integrates seamlessly into global electrical systems.

Can phlogopite mica sheet be customized for specific thickness and size?

Absolutely, phlogopite mica sheet can be customized for thickness (0.1-2.0 mm) and size (up to 1000mm×2000mm) to meet client needs. For example, we produce 0.2mm thin sheets for 5G circuits and 1.5mm thick sheets for high-voltage transformers. The group uses precision cutting equipment (tolerance ±0.5 mm for size) and can add custom coatings (e.g., silicone for moisture resistance) upon request—95% of clients report the customized phlogopite mica sheet fits their equipment perfectly, eliminating the need for on-site modification.

What packaging options are available for phlogopite mica and phlogopite mica sheet?

Phlogopite mica (flake form) is available in 25kg sealed PE bags (moisture-proof) to protect against humidity. Phlogopite mica sheet is packed in 50-sheet stacks (separated by acid-free paper) inside cardboard boxes, with larger orders (1000+ sheets) shipped in wooden crates to prevent bending. All packaging includes batch-specific CoA with dielectric strength and thermal resistance data, and custom packaging (e.g., anti-static bags for electronics-grade sheets) is available—ensuring phlogopite mica and phlogopite mica sheet reach clients in optimal condition for electrical insulation use.
